Gladhands

Direct replacement gladhands the will restore the connection of pressurized air from your tractor to the air brakes on your semi-trailer. We stock high quality OEM replacement air brake replacement parts.

Grid List

Sort Order

SKU 179.1002

$5.10

Gladhand | Emergency | Red

Air brake gladhand 179.1002. Red with 1/2 inch female pipe. Details

5 In Stock

Color:Red
Port Size:1/2 inch
Advance Mixer Number:11451
Bendix Number:278524, 278851
BWP Number:M-313C, M-313-C
Dayton Number:12-40419
Euclid Number:E9108, E-9108
Leland Number:L-1080
Mack Number:278524
Midland Number:11451
Newstar Number:S-10043
Phillips Number:12008, 12-008
Sloan Number:441016
Tectran Number:1011E, 16027, 16208,
Tramec Number:36201, 56201
Velvac Number:035042
UPC: 889626043932
MPN: 179.1002

SKU 179.1001

$5.10

Gladhand | Service | Blue

Air brake gladhand 179.1001. Blue, 1/2 inch female pipe. Details

11 In Stock

Color:Blue
Port Size:1/2 inch
Bendix Number:278523, 278850
BWP Number:M-313B, M-313-B
Dayton Number:12-40418
Euclid Number:E9107
Fruehauf Number:ACA-0247-002, ACA-0247-2, ACA02472
Haldex Number:11452, N1202BC
Leland Number:L1081
Mack Number:59QE151, 59QE123
Midland Number:11452
Newstar Number:S-10044
Phillips Number:12006
Sloan Number:441015
Tectran Number:1011S, 16057, 16061
Tramec Number:56101
Velvac Number:035045
Wagner Number:941010
UPC: 889626044069
MPN: 179.1001

SKU B2400-B83

$40.70

Quick Release Valve | Lift Axle

AIRman Quick release valve B2400-B83 for suspension dump, lift axle applications. Details

7 In Stock

Supply:3/8 inch
Delivery:3/8 inch
Specs: AIRman B2400-B83 Dimensional Drawing.
Cross References:AK00026N, 223-681, QR3
Automann Number:170.QR3801A
Norgren Number:T70A3800
Sealco Number:510-25001-00
Silent Drive Number:1814-000-A
MPN: B2400-B83

SKU B2400-B82

$43.62

Quick Release Valve | Lift Axle

AIRman Quick release valve B2400-B82 for suspension dump, lift axle applications. Details

9 In Stock

Supply:1/4 inch
Delivery:1/4 inch
Specs: AIRman B2400-B82 Dimensional Drawing.
Cross References:230078, 004348-1, QEV13AA1H00S, QE4, QR2, R0043481
Automann Number:170.QR1401A
MPN: B2400-B82

SKU 170.97350010

$129.04

Quick Release Valve | Wabco

Quick release valve 170.9735000510. Two M22x1.5 and one M16x1.5 ports. Details

1 In Stock

Meritor Number:S9735000510
Wabco Number:9735000510
UPC: 889626026492
MPN: 170.9735000510

SKU 179.1091

$33.92

Gladhand | Swivel Service | Cast Iron | Blue

Service gladhand 179.1091 with cast iron body. Poly seal, zinc plated bracket, swivel, blue color. Details

2 In Stock

Color:Blue
Tramec Number:36131U
UPC: 889626550096
MPN: 179.1091

SKU 179.1092

$33.92

Gladhand | Swivel Emergency | Cast Iron | Red

Emergency gladhand 179.1092 with cast iron body. Poly seal, zinc plated bracket, swivel, red color. Details

1 In Stock

Color:Red
Tramec Number:36231U
UPC: 889626550102
MPN: 179.1092

SKU 401146

$51.32

Quick Release Valve | Gladhand | In-Line

In-line quick release valve. Mounts at tractor gladhand. Details

1 In Stock

Automann Number:170.2291
Freightliner Number:GTD400-6
Newstar Number:S-C069
UPC: 66931403115
MPN: 401146

SKU 11483

$52.88

Quick Release Valve | Gladhand | Service

Service quick release gladhand 11483 features a nipple mount. Details

1 In Stock

OEM Number:N20405EA
MPN: 11483

SKU 11484

$61.72

Gladhand | Service | Quick Release, Aluminium Body, 40°

Haldex 11484 40° service gladhand features a chromate conversion coated aluminium body with zinc yel... Details

1 In Stock

Cross References:N20405FA, 070-11484
MPN: 11484

SKU 36406

$5.55

Gladhand | Dummy | Vented Stamped

Sloan 36406 vented stamped dummy gladhand with 9.34 inch chain. Details

5 In Stock

UPC: 84202200913
MPN: 36406

SKU 36407

$5.58

Gladhand | Dummy | Non-Vented

Sloan 36407 non-vented dummy gladhand with 9.34 inch chain. Details

2 In Stock

Cross References:035037
Automann Number:179.1052
Bendix Number:220636
Ford Number:E3HS2L226AA
Haldex Number:1023AH, 11402, N13048
Meritor Number:R11402
Phillips Number:120100
Tectran Number:9411
UPC: 742512364071
MPN: 36407

What are Gladhands?

Gladhands are a standardized air connection used on trucks and trailers that use air brakes. They are called gladhands because when the connection is made they have the appearance of a pair of hands in a hand shake. Gladhands provide a quick and reliable means to connect the parking and emergency air circuits between trucks and trailers. Gladhands securely lock together and seal with a pair of grommets. The grommets will wear and will require routine replacement to prevent air leaks.

Types of Gladhands

Typically, the gladhands will be rigid mounted to a trailer and sit in a fixed location. On the truck they will be mounted at the ends of air hoses. The air hoses will be an adequate length to allow the truck to turn and the trailer to follow without pulling on the gladhands or destroying the lines. Basic gladhands will do the job but in some situations gladhands with different configurations can make life a bit easier.

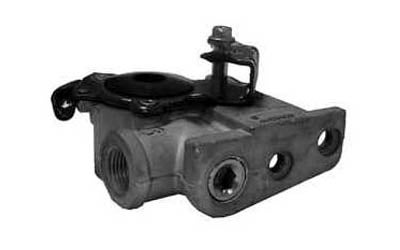

Quick Release Gladhands: Quick release gladhands are normally ridged mounted and speed up brake release times. These include a built in quick release valve which helps exhaust air from the service brakes more quickly when the pedal is released.

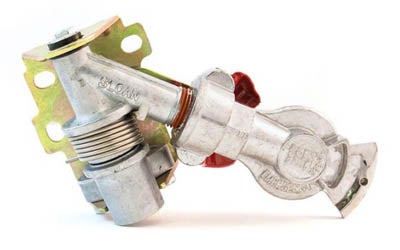

Swing-Away Gladhands: Swing-away gladhands are trailer mounted and allow the connection to pivot with the trailer and when not in use, they will sit closer to the trailer instead of projecting out from the front of the trailer. This will lower the chance of catching a gladhand and breaking it off.

Angled Gladhands: Angled gladhands are trailer mounted and can be used when the location of the gladhand is abnormal and may pull on the truck’s air lines.

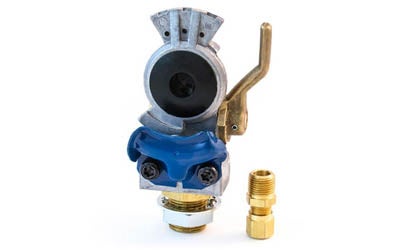

Gladhands with Shutoff: Gladhands with shutoff are available in both rigid and airline mounted. Gladhands with a shutoff can be used when the air connection is not isolated by a tractor protection valve or on a connection that will lose air when disconnected.

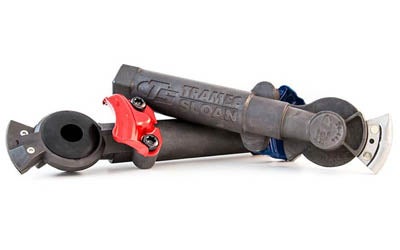

Gladhands with Grips: Gladhands with grips are truck airline mounted and can be helpful when working in colder climates with gloves on.

Gladhand Accessories

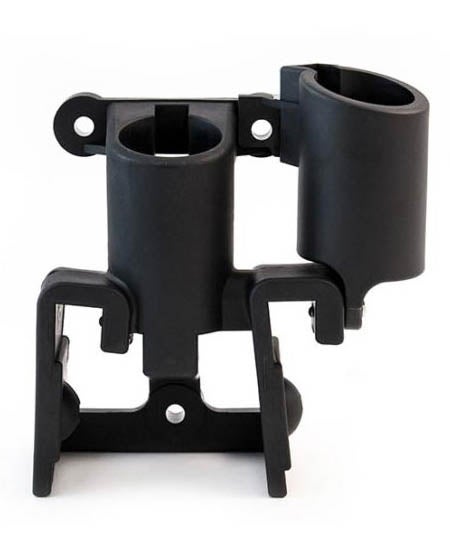

Gladhand Holder: Mount to the truck and allow you to mount the gladhand to the truck and protect the lines from damage when not in use. Some gladhand holders will also have a holder for your 7-way electrical connection.
Gladhand Lock: Used to deter trailer thieves or prevent connections to a certain airport.
Replacement Grommets for Gladhands: Can be color coded to identify emergency or service brakes or black for universal use. Grommets will wear out with normal use and having extras around can stop headaches. Can be found in standard rubber or more robust polyurethane
Gladhand Grommet with Screen: Used to prevent solid contaminants from entering your air system. Screens on gladhand grommets will prevent spiders and wasps from making nests inside your airlines when not in use.
Gladhand Handles: Can be added to most gladhands to assist with grip when gloves are on.

Gladhands are often abused and overlooked but when one is broken or starts to leak you will take notice quickly. Pick up some replacement grommets and a gladhand holder to bring your gladhands up to snuff and keep them safe or pick up a new assembly to replace the one that only drug under the truck for a mile or two. At TruckSpring.com we have the parts you need to keep air going to your trailer and keep your rig on the road.
